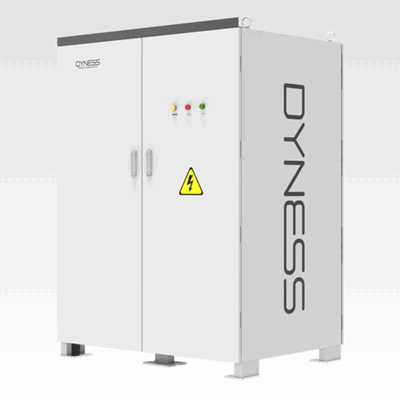

| PowerStone-15s |
| Battey Type |
Li-ion(LFP) |
| Nominal Battery System Energy |
76.8kWh |
| Nominal Battery System Voltage |
768Vdc |
| Battery System Working Voltage Range |
672~864Vdc |
| Battery System Weight |
1450kg |
| Battery Cabinet Dimension(W*D*H) |
1315*1010*1880mm |
| Battery Module Type |
HV51100F |
| Battery Module Number |
15pcs |
| Expansion |
Max.12 cabinets connected in parallel |
| Recomended Charge & Discharge C Rate |
1 |
| Max.Depth of Discharge |
100% |
| Battery System Protection Level |
IP55 |
| Anticorrosion Grade |
C5 |
| Altitude |
=2000m |
| Communication |
CAN/RS485 |
| Installation Environment |
Outdoor |
| Cooling Method |
Air conditioning cooling |
| Wiring |
Cables enter and exit at the bottom of the cabinet |
| Humidity range |
5%~85%RH(No condensation) |
| Complance |
UN38.3/IEC62619/1EC63056/IEC6247/EMC |
