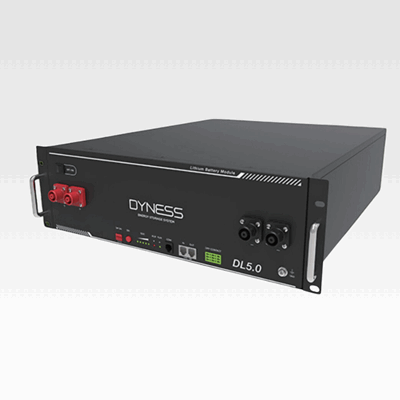

Model
|
DL5.0 |
Battery Type
|
LiFePO4 |
Nominal Battery Energy
|
5.12 kWh |
Nominal Capacity
|
100Ah |
Nominal Voltage
|
51.2V |
Operating Voltage
|
44.8~57.6V |
Recomended Charge & Discharge C Rate
|
0.5C |
Recommended Charge/Discharge Current
|
50A |
Max. Power Charge/Discharge Current
|
75A |
Peak Power Charge/Discharge Current
|
100A(15S) |
Depth of Discharge (DOD)
|
90% |
Net Weight
|
44 kg |
Dimension[W*D*H]
|
481*535*140 mm |
Charging Temp. Range
|
0~55? |
Discharging Temp. Range
|
-20~55°C |
Communication
|
CAN/RS485/RS232 |
Cycle Life
|
=6000 Cycles
|
Protection Level
|
IP20 |
Expansion
|
Up to 50 units in parallel
|
Pros
|
Can be used in both off-grid and hybrid setups, compact design
|
Certification & Safety Standard
|
UN38.3/CE-EMC/IEC62619 |
Compatible Inverters
|
SMA/Victron/Ingeteam/Delios/Goodwe/Solis/Deye/SAJ/Voltronic/Sungrow etc. |
