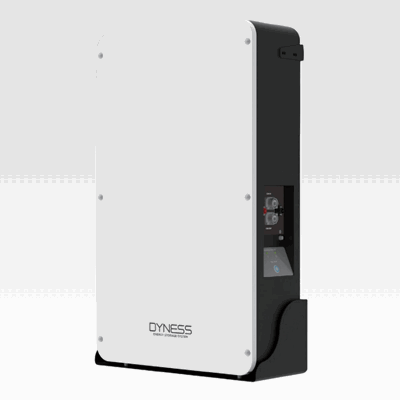

Powerbox Pro |
Battery Type |
LiFePO4 |
Nominal Battery Energy |
10.24 kWh |
Operating Voltage |
44.8 ~ 57.6V |
Usable Energy |
9.728kWh |
Nominal Voltage |
51.2V |
Nominal Capacity |
200Ah |
Nominal Power |
5.12kW |
Peak Power |
10.24kW |
Recommended C Rate |
0.5C |
Recommended Charge/Discharge Current |
100A |
Recommended Depth of Discharge (DOD) |
90% |
Net Weight |
103 kg |
Dimension[W*D*H] |
555*210*928 mm |
Charging Temp. Range |
0~55? |
Discharging Temp. Range |
-20~55? |
Communication |
CAN/RS485/RS232 |
Cycle Life[1] |
=6000 Cycles |
Protection Level |
IP65 |
Expansion |
up to 5 units in parallel |
Color |
White |
Alarms |
Overcharge/Over-discharge/Overcurrent/ Overtemperature/Short Circuit |
Pros |
Can be used in both off-grid and hybrid setups, compact design, floor or wall-mounted |
Certification & Safety Standard |
UN38.3/CE-EMC/IEC62619/IEC62040/IEC60730/UKCA/CEC Accredited |
